PyTorch学习笔记

  1. 基础Tensor(张量)操作
    TODO
  2. 创建线性(玩具)数据集
    import torch
    from torch import nn
    import matplotlib.pyplot as plt

    device = "cuda" if torch.cuda.is_available() else "cpu"
    print(device)

    # create data
    weight = 0.6
    bias = 0.4
    start = 0
    end = 1
    step = 0.01

    X = torch.arange(start, end, step).unsqueeze(dim=1)
    y = weight * X + bias
    X[:10], y[:10]

    train_split = int(0.8 * len(X))
    X_train, y_train = X[:train_split], y[:train_split]
    X_test, y_test = X[train_split:], y[train_split:]
  3. 回归模型实现线性数据集的拟合
    # model
    class LinearRegressionModel(nn.Module):
      def __init__(self):
        super().__init__()
        self.linear_layer = nn.Linear(in_features=1, out_features=1)

      def forward(self, x: torch.Tensor) -> torch.Tensor:
        return self.linear_layer(x)

    # train
    model_2 = LinearRegressionModel()
    model_2, model_2.state_dict()
    model_2.to(device)

    # gpu if available
    device = "cuda" if torch.cuda.is_available() else "cpu"

    loss_fn = nn.L1Loss()
    optimizer = torch.optim.SGD(params=model_2.parameters(), lr=0.01)

    epochs = 500

    X_train = X_train.to(device)
    X_test = X_test.to(device)
    y_train = y_train.to(device)
    y_test = y_test.to(device)

    for epoch in range(epochs):
      model_2.train()

      y_pred = model_2(X_train)

      loss = loss_fn(y_pred, y_train)

      optimizer.zero_grad()

      loss.backward()

      optimizer.step()

      model_2.eval()

      with torch.inference_mode():
        test_pred = model_2(X_test)
        test_loss = loss_fn(test_pred, y_test)
      print(f"Epoch: {epoch} | Train loss: {loss} | Test loss: {test_loss}")

    # predict
    model_2.eval()
    with torch.inference_mode():
      # X_test = X_test.to(device)
      y_preds = model_0(X_test)
    y_preds

    # save model
    MODEL_SAVE_PATH = "./models/model_2.pth"
    torch.save(obj=model_2.state_dict(), f=MODEL_SAVE_PATH)

    # load model
    model_l = LinearRegressionModel()
    model_l.load_state_dict(torch.load(f=MODEL_SAVE_PATH))
  4. 构建非线性(玩具)数据集合
    from sklearn.datasets import make_circles

    n_samples = 1000

    X, y = make_circles(n_samples, noise=0.05)

    print(f"First 5 features:\n{X[:5]}")
    print(f"First 5 labels:\n{y[:5]}")

    import pandas as pd
    circles = pd.DataFrame({
        "X1": X[:, 0],
        "X2": X[:, 1],
        "label": y
    })

    circles.head(10)
    circles.label.value_counts()

    import matplotlib.pyplot as plt

    plt.scatter(x=circles.X1, y=circles.X2, c=circles.label, cmap=plt.cm.RdYlBu)

    import torch

    X = torch.from_numpy(X).type(torch.float)
    y = torch.from_numpy(y).type(torch.float)

    X[:5], y[:5]

    from sklearn.model_selection import train_test_split

    X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2)

    # send to device
    device = "cuda" if torch.cuda.is_available() else "cpu"
    print(device)

    X_train_d = X_train.to(device)
    X_test_d = X_test.to(device)
    y_train_d = y_train.to(device)
    y_test_d = y_test.to(device)
  5. 训练非线性模型
    利用ReLU引入非线性学习能力,损失函数是BCEWithLogitsLoss

    from torch import nn

    class CircleModel(nn.Module):
      def __init__(self):
        super().__init__()
        self.layer = nn.Sequential(
            nn.Linear(in_features=2, out_features=16),
            nn.ReLU(),
            nn.Linear(in_features=16, out_features=128),
            nn.ReLU(),
            nn.Linear(in_features=128, out_features=16),
            nn.ReLU(),
            nn.Linear(in_features=16, out_features=1),
        )

      def forward(self, X):
        return self.layer(X)

    model_c = CircleModel().to(device)
    loss_fn = nn.BCEWithLogitsLoss()
    optimizer = torch.optim.SGD(params=model_c.parameters(), lr = 0.05)

    def accuracy_fn(y_true, y_pred):
        correct = torch.eq(y_true, y_pred).sum().item() # torch.eq() calculates where two tensors are equal
        acc = (correct / len(y_pred)) * 100
        return acc

    epochs = 2000

    for epoch in range(epochs):
      # 1. forward
      y_logits = model_c(X_train_d).squeeze()
      y_pred = torch.round(torch.sigmoid(y_logits))

      # 2. loss and acc
      loss = loss_fn(y_logits, y_train_d)
      acc = accuracy_fn(y_true=y_train_d, y_pred=y_pred)

      # 3. Optimizer zero grad
      optimizer.zero_grad()

      # 4. Loss backwards
      loss.backward()

      # 5. Optimizer step
      optimizer.step()

      # Testing
      model_c.eval()
      with torch.inference_mode():
        test_logits = model_c(X_test_d).squeeze()
        test_pred = torch.round(torch.sigmoid(test_logits))
        test_loss = loss_fn(test_logits, y_test_d)
        test_acc = accuracy_fn(y_true=y_test_d, y_pred=test_pred)
      if epoch % 10 == 0 or epoch == epochs:
        print(f"Epoch: {epoch} | Loss: {loss:.5f}, Accuracy: {acc:.2f}% | Test loss: {test_loss:.5f}, Test acc: {test_acc:.2f}%")

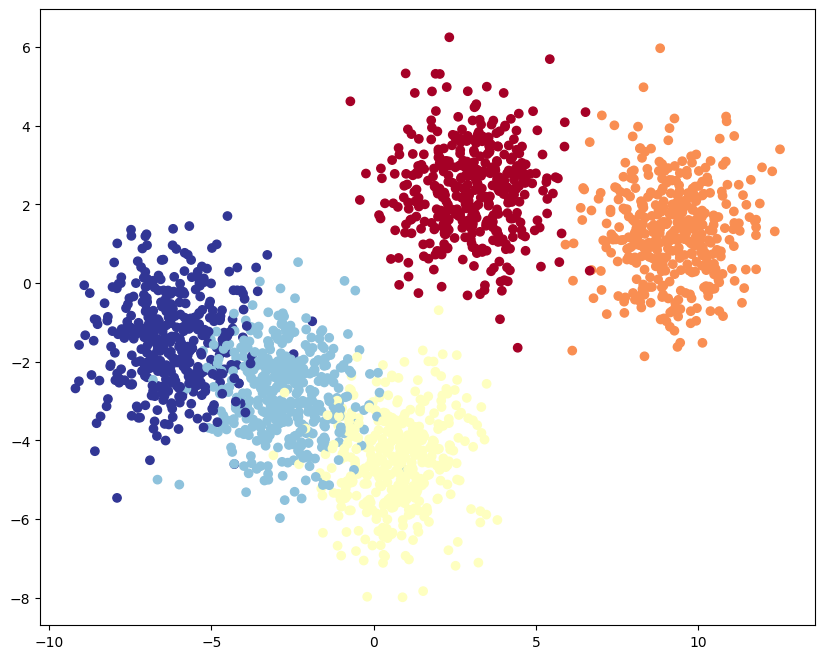

  6. 生成二维(玩具)数据集
    from sklearn.datasets import make_blobs
    from sklearn.model_selection import train_test_split
    import torch
    import matplotlib.pyplot as plt


    SAMPLES = 2000
    FEATURES = 2
    CLASSES = 5

    X_blob, y_blob = make_blobs(n_samples = SAMPLES, n_features = FEATURES, centers = CLASSES, cluster_std = 1.2)

    X_blob = torch.from_numpy(X_blob).type(torch.float)
    y_blob = torch.from_numpy(y_blob).type(torch.LongTensor)

    print(X_blob[:5], y_blob[:5])

    # train / test
    X_blob_train, X_blob_test, y_blob_train, y_blob_test = train_test_split(X_blob, y_blob, test_size = 0.3)

    # figure
    plt.figure(figsize=(10, 8))
    plt.scatter(X_blob[:,0], X_blob[:,1], c=y_blob, cmap=plt.cm.RdYlBu)

  7. 多分类器
    相对较二分类问题,多分类问题需要使用损失函数(CrossEntropyLoss)、可用优化器(Adam)、使用torchmetrics计算准确率

    from torch import nn

    class BlobModel(nn.Module):

      def __init__(self, input_features, output_features, hidden_units=32):
        super().__init__()
        self.layer = nn.Sequential(
            nn.Linear(in_features = input_features, out_features=hidden_units * 2),
            nn.ReLU(),
            nn.Linear(in_features = hidden_units * 2, out_features=hidden_units * 4),
            nn.ReLU(),
            nn.Linear(in_features = hidden_units * 4, out_features=hidden_units),
            nn.ReLU(),
            nn.Linear(in_features = hidden_units, out_features=output_features)
        )

      def forward(self, x):
        return self.layer(x)

    try:
        from torchmetrics import Accuracy
    except:
        !pip install torchmetrics
        from torchmetrics import Accuracy

    model_b = BlobModel(input_features = FEATURES, output_features = CLASSES).to(device)


    loss_fn = nn.CrossEntropyLoss()
    optimizer = torch.optim.Adam(model_b.parameters(), lr=0.01)
    torchmetrics_accuracy = Accuracy(task='multiclass', num_classes=CLASSES).to(device)

    epochs = 200

    for epoch in range(epochs):
        ### Training
        model_b.train()

        # 1. Forward pass
        y_logits = model_b(X_blob_train) # model outputs raw logits
        y_pred = torch.softmax(y_logits, dim=1).argmax(dim=1) # go from logits -> prediction probabilities -> prediction labels
        # print(y_logits)
        # 2. Calculate loss and accuracy
        loss = loss_fn(y_logits, y_blob_train)
        acc = torchmetrics_accuracy(y_pred, y_blob_train) * 100

        # 3. Optimizer zero grad
        optimizer.zero_grad()

        # 4. Loss backwards
        loss.backward()

        # 5. Optimizer step
        optimizer.step()

        ### Testing
        model_b.eval()
        with torch.inference_mode():
          # 1. Forward pass
          test_logits = model_b(X_blob_test)
          test_pred = torch.softmax(test_logits, dim=1).argmax(dim=1)
          # 2. Calculate test loss and accuracy
          test_loss = loss_fn(test_logits, y_blob_test)
          test_acc = torchmetrics_accuracy(test_pred, y_blob_test) * 100

        # Print out what's happening
        if epoch % 10 == 0 or epoch == epochs:
            print(f"Epoch: {epoch} | Loss: {loss:.5f}, Acc: {acc:.2f}% | Test Loss: {test_loss:.5f}, Test Acc: {test_acc:.2f}%")

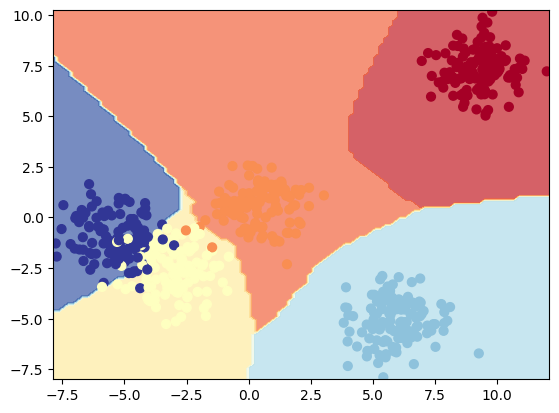

  8. 打印模型边界
    更多好用的函数在这里 https://raw.githubusercontent.com/mrdbourke/pytorch-deep-learning/main/helper_functions.py

    def plot_decision_boundary(model: torch.nn.Module, X: torch.Tensor, y: torch.Tensor):
        """Plots decision boundaries of model predicting on X in comparison to y.

        Source - https://madewithml.com/courses/foundations/neural-networks/ (with modifications)
        """
        # Put everything to CPU (works better with NumPy + Matplotlib)
        model.to("cpu")
        X, y = X.to("cpu"), y.to("cpu")

        # Setup prediction boundaries and grid
        x_min, x_max = X[:, 0].min() - 0.1, X[:, 0].max() + 0.1
        y_min, y_max = X[:, 1].min() - 0.1, X[:, 1].max() + 0.1
        xx, yy = np.meshgrid(np.linspace(x_min, x_max, 101), np.linspace(y_min, y_max, 101))

        # Make features
        X_to_pred_on = torch.from_numpy(np.column_stack((xx.ravel(), yy.ravel()))).float()

        # Make predictions
        model.eval()
        with torch.inference_mode():
            y_logits = model(X_to_pred_on)

        # Test for multi-class or binary and adjust logits to prediction labels
        if len(torch.unique(y)) > 2:
            y_pred = torch.softmax(y_logits, dim=1).argmax(dim=1)  # mutli-class
        else:
            y_pred = torch.round(torch.sigmoid(y_logits))  # binary

        # Reshape preds and plot
        y_pred = y_pred.reshape(xx.shape).detach().numpy()
        plt.contourf(xx, yy, y_pred, cmap=plt.cm.RdYlBu, alpha=0.7)
        plt.scatter(X[:, 0], X[:, 1], c=y, s=40, cmap=plt.cm.RdYlBu)
        plt.xlim(xx.min(), xx.max())
        plt.ylim(yy.min(), yy.max())
    plot_decision_boundary(model_b, X_blob_test, y_blob_test)

  9. 加载pyTorch的内置数据集合
    import torch
    from torch import nn

    import torchvision
    from torchvision import datasets
    from torchvision.transforms import ToTensor

    import matplotlib.pyplot as plt

    train_data = datasets.FashionMNIST(
        root = "data",
        train=True,
        download=True,
        transform=ToTensor(),
        target_transform=None
    )

    test_data = datasets.FashionMNIST(
        root = "data",
        train=False,
        download=True,
        transform=ToTensor()
    )

    image, label = train_data[0]
    image.shape, label

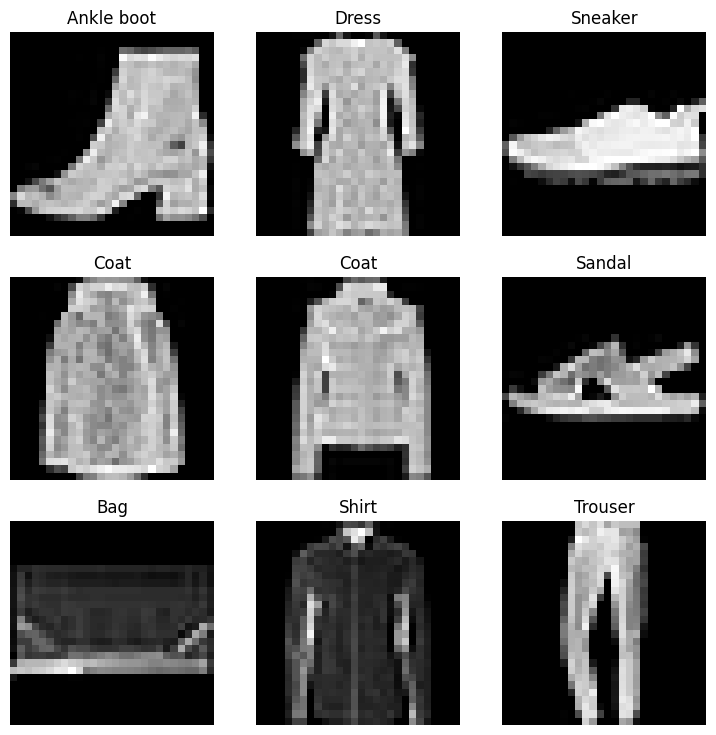

  10. 随机打印数据集的图片和标签
    class_names = train_data.classes

    fig = plt.figure(figsize=(9, 9))
    rows, cols = 3, 3
    for i in range(1, rows * cols + 1):
      rand_idx = torch.randint(0, len(train_data), size=[1]).item()
      img, label = train_data[rand_idx]
      fig.add_subplot(rows, cols, i)
      plt.imshow(img.squeeze(), cmap='gray')
      plt.title(class_names[label])
      plt.axis(False)

  11. 加载数据(转batch)
    注意训练数据一定要shuffle

    from torch.utils.data import DataLoader

    BATCH_SIZE = 32
    train_dl = DataLoader(train_data, batch_size=BATCH_SIZE, shuffle=True)
    test_dl = DataLoader(test_data, batch_size=BATCH_SIZE, shuffle=False)
  12. CNN做图像分类任务
    这里使用的是TinyVGG架构,注意点如下:|
    1 每一层CNN都是Conv2d + Relu + Conv2d + MaxPool
    2 Conv2d的参数:in_chan是图像数量、out_chan是feature_map的数量、kernel_size是核大小、stride是核一次走多少,padding是图片周围是否额外加一圈白
    3 下面这个CNN层的shape参数有点难调,可以用print大法打印
    4 CNN的解释参数在线演示:https://poloclub.github.io/cnn-explainer/

    class FashionMNISTModel(nn.Module):
      def __init__(self, input_n: int, hidden_units: int, output_n: int):
        super().__init__()
        self.block1 = nn.Sequential(
            nn.Conv2d(in_channels = input_n,       # image channel, rgb is 3, gray is 1
                      out_channels = hidden_units, # num of feature maps
                      kernel_size = 3,             # how bit is square go over image
                      stride = 1,                  # kernel skip how many
                      padding = 1),                # add padding for image
            nn.ReLU(),
            nn.Conv2d(in_channels = hidden_units,
                      out_channels = hidden_units,
                      kernel_size = 3,
                      stride = 1,
                      padding = 1),
            nn.ReLU(),
            nn.MaxPool2d(kernel_size = 2, stride = 2)
        )
        self.block2 = nn.Sequential(
            nn.Conv2d(in_channels = hidden_units,
                      out_channels = hidden_units,
                      kernel_size = 3,
                      stride = 1,
                      padding = 1),
            nn.ReLU(),
            nn.Conv2d(in_channels = hidden_units,
                      out_channels=hidden_units,
                      kernel_size=3,
                      stride=1,
                      padding=1),
            nn.ReLU(),
            nn.MaxPool2d(kernel_size=2, stride=2)
        )
        self.classifier = nn.Sequential(
            nn.Flatten(),
            nn.Linear(in_features = hidden_units * 7 * 7, out_features = output_n)
        )

      def forward(self, x: torch.Tensor):
        x = self.block1(x)
        #print(f"shape of block1 output: {x.shape}")
        x = self.block2(x)
        #print(f"shape of block2 output: {x.shape}")
        x = self.classifier(x)
        return x

    这里的loss和optimizer如下:

    model1 = FashionMNISTModel(input_n=1, hidden_units=32, output_n=len(class_names))
    loss_fn = nn.CrossEntropyLoss()
    optimizer = torch.optim.Adam(params=model1.parameters(), lr=0.01)
    #optimizer = torch.optim.SGD(params=model1.parameters(), lr=0.1)

    这里有个很奇怪的现象是:Adam似乎不太稳定,对于特定参数行,另一些可能loss完全下不去,而SGD就很稳定。网上查了下,有说是pyTorch的bug的。
    更新:又试了下,把Adam的lr调小,能好很多,甚至能比还SGD强4%,Adam的默认lr应该是0.001,一般都不需要手动设置。

  13. 训练步骤的抽象函数
    注意这里的accuracy函数,如果使用torchmatrics库的话,要乘以100,以及参数顺序不同。
    另外,由于是按照批次累计的,所以最终需要按批次进行平均

    def train_step(model: torch.nn.Module,
                   dl: torch.utils.data.DataLoader,
                   loss_fn: torch.nn.Module,
                   optimizer: torch.optim.Optimizer,
                   accuracy_fn,
                   device: torch.device = device):
      train_loss, train_acc = 0, 0
      model.to(device)
      for batch, (X, y) in enumerate(dl):
        X, y = X.to(device), y.to(device)

        # 1. forward
        y_pred_logits = model(X)
        #print(y_pred_logits, y_pred_logits.shape)
        y_pred = y_pred_logits.argmax(dim=1)
        #print(y_pred, y_pred_logits.shape)

        # 2. cal loss
        loss = loss_fn(y_pred_logits, y)
        train_loss += loss
        train_acc += accuracy_fn(y_pred, y)  * 100
        #train_acc += accuracy_fn(y_true=y, y_pred=y_pred)

        # 3. optim zero gard
        optimizer.zero_grad()

        # 4. loss backward
        loss.backward()

        # 5. optimize step
        optimizer.step()

      # avg loss & acc
      train_loss /= len(dl)
      train_acc /= len(dl)
      print(f"Train loss: {train_loss:.5f} | Train accuracy: {train_acc:.2f}%")

  14. 测试函数的抽象函数
    def test_step(model: torch.nn.Module,
                   dl: torch.utils.data.DataLoader,
                   loss_fn: torch.nn.Module,
                   accuracy_fn,
                   device: torch.device = device):
      test_loss, test_acc = 0, 0
      model.to(device)
      model.eval()

      with torch.inference_mode():
        for X, y in dl:
          X, y = X.to(device), y.to(device)

          # 1. forward
          test_pred_logits = model(X)
          test_pred = test_pred_logits.argmax(dim = 1)

          # 2. cal loss & acc
          test_loss += loss_fn(test_pred_logits, y)
          test_acc += accuracy_fn(test_pred, y) * 100
          #test_acc += accuracy_fn(y_true=y, y_pred=test_pred)

        # avg
        test_loss /= len(dl)
        test_acc /= len(dl)
        print(f"Test loss: {test_loss:.5f} | Test accuracy: {test_acc:.2f}%\n")

  15. 评估模型
    和test流程差不多

    def eval_model(model: torch.nn.Module,
                   dl: torch.utils.data.DataLoader,
                   loss_fn: torch.nn.Module,
                   accuracy_fn,
                   device: torch.device = device):
      loss, acc = 0, 0
      model.eval()
      with torch.inference_mode():
        for X, y in dl:
          X, y = X.to(device), y.to(device)
          y_pred = model(X)
          loss += loss_fn(y_pred, y)
          acc += accuracy_fn(y_pred, y) * 100

        loss /= len(dl)
        acc /= len(dl)

      return {"model_name": model.__class__.__name__,
              "model_loss": loss.item(),
              "model_acc": acc}

    eval_model(model=model1, dl=test_dl, loss_fn=loss_fn, accuracy_fn=accuracy_fn)
  16. 预测
    def make_predictions(model: torch.nn.Module,
                         data: list,
                         device: torch.device = device):
      pred_probs = []
      model.eval()
      with torch.inference_mode():
        for sample in data:
          # add batch
          sample = torch.unsqueeze(sample, dim=0).to(device)

          pred_logit = model(sample)

          # remove batch and max
          pred_prob = torch.softmax(pred_logit.squeeze(), dim=0)

          pred_probs.append(pred_prob.cpu())

      # make into tensor
      return torch.stack(pred_probs)


    # test data
    import random
    n_samples = 4
    test_samples = []
    test_labels = []
    for sample, label in random.sample(list(test_data), k=n_samples):
        test_samples.append(sample)
        test_labels.append(label)

    # make pred
    pred_probs= make_predictions(model=model1,
                                 data=test_samples)
    pred_classes = pred_probs.argmax(dim=1)

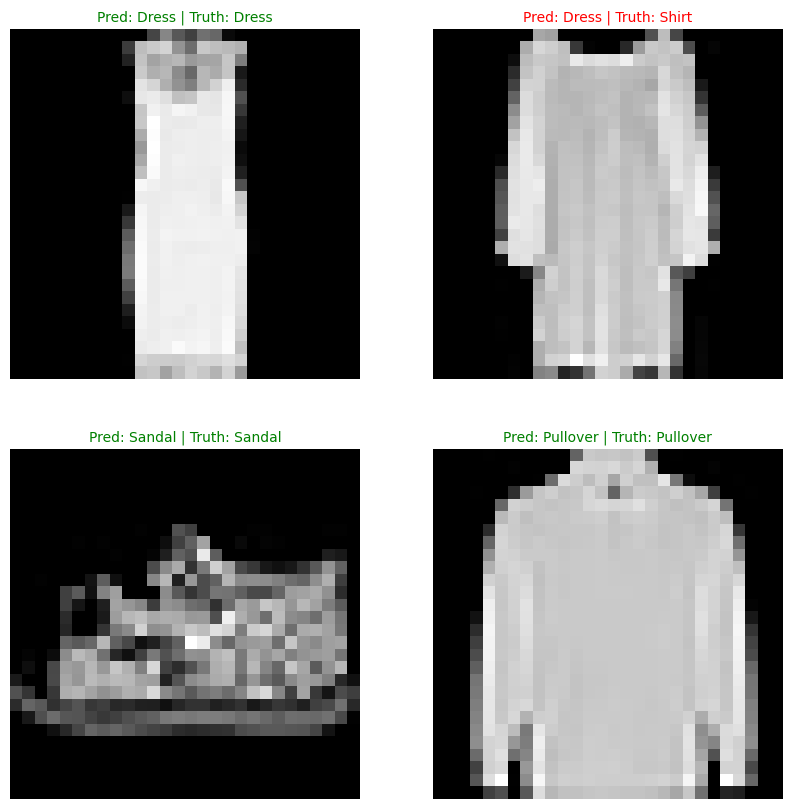

    # figure it
    plt.figure(figsize=(10, 10))
    nrows = 2
    ncols = 2
    for i, sample in enumerate(test_samples):
      # Create a subplot
      plt.subplot(nrows, ncols, i+1)

      # Plot the target image
      plt.imshow(sample.squeeze(), cmap="gray")

      # Find the prediction label (in text form, e.g. "Sandal")
      pred_label = class_names[pred_classes[i]]

      # Get the truth label (in text form, e.g. "T-shirt")
      truth_label = class_names[test_labels[i]]

      # Create the title text of the plot
      title_text = f"Pred: {pred_label} | Truth: {truth_label}"

      # Check for equality and change title colour accordingly
      if pred_label == truth_label:
          plt.title(title_text, fontsize=10, c="g") # green text if correct
      else:
          plt.title(title_text, fontsize=10, c="r") # red text if wrong
      plt.axis(False);

  17. Transform(预处理)
    这里说的是对训练数据(例如图像)做预处理,pyTorch中预置了一些,常用的有
    Resize(缩放)、RandomXXFlip(随机旋转)、ToTensor(数值缩放为0~1.0之间)
    可以把这些处理整合成一个链路,如下:

    ata_transform = transforms.Compose([
        # Resize the images to 64x64
        transforms.Resize(size=(64, 64)),
        # Flip the images randomly on the horizontal
        transforms.RandomHorizontalFlip(p=0.5), # p = probability of flip, 0.5 = 50% chance
        # Turn the image into a torch.Tensor
        transforms.ToTensor() # this also converts all pixel values from 0 to 255 to be between 0.0 and 1.0
    ])
  18. Transfer Learning(Transform)
    使用PyTorch内置的模型权重时,需要使用相同的Transform预处理,对于vision(图像)的约定的在这里

    transforms = v2.Compose([
        v2.RandomResizedCrop(size=(224, 224), antialias=True),
        v2.RandomHorizontalFlip(p=0.5),
        v2.ToDtype(torch.float32, scale=True),
        v2.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]),
    ])

    也可以直接使用模型上的来替代:

    weights = torchvision.models.EfficientNet_B0_Weights.DEFAULT
    auto_transforms = weights.transforms()

    查看 模型形状:

    summary(model=model,
            input_size=(32, 3, 224, 224), # make sure this is "input_size", not "input_shape"
            # col_names=["input_size"], # uncomment for smaller output
            col_names=["input_size", "output_size", "num_params", "trainable"],
            col_width=20,
            row_settings=["var_names"]
    )

    模型其他层参数保持冻结,只修改输出层的分类数量:

    for param in model.features.parameters():
      param.requires_grad = False

    output_shape = len(class_names)
    model.classifier = torch.nn.Sequential(
        torch.nn.Dropout(p=0.2, inplace=True),
        torch.nn.Linear(in_features=1280,
                        out_features=output_shape, # same number of output units as our number of classes
                        bias=True)).to(device)

    然后用自己的训练数据进行训练、测试即可完成微调。
    也可以开启更多层不冻结,做更大范围微调。
    甚至可以修改分类器为其他任务,例如用模型做图像分割任务。

  19. PyTorch中内置的其他常见层:
    nn.Flatten:将张量压平
    nn.MultiheadAttention:Transform注意力机制的多头(现在基本已经替代了RNN)
    nn.LayerNorm:层标准化,能加速收敛,避免梯度消失
    nn.GELU:类似RELU,另一种激活函数
    nn.TransformerEncoder:叠加了N层encoder的Transfomer
    nn.TransformerDecoderLayer:叠加了N层decoder的Transformer
  20. TODO

Leave a Reply

Your email address will not be published. Required fields are marked *
